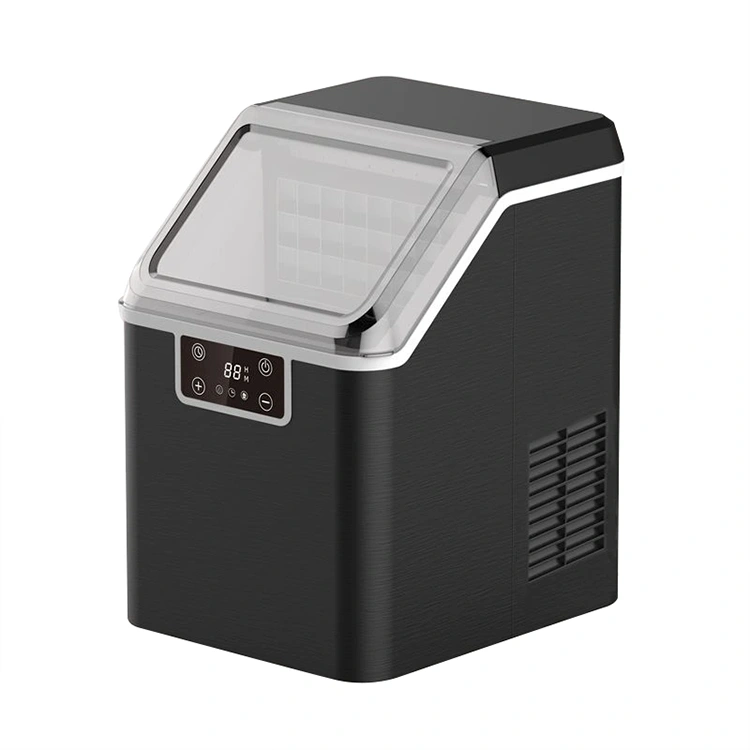

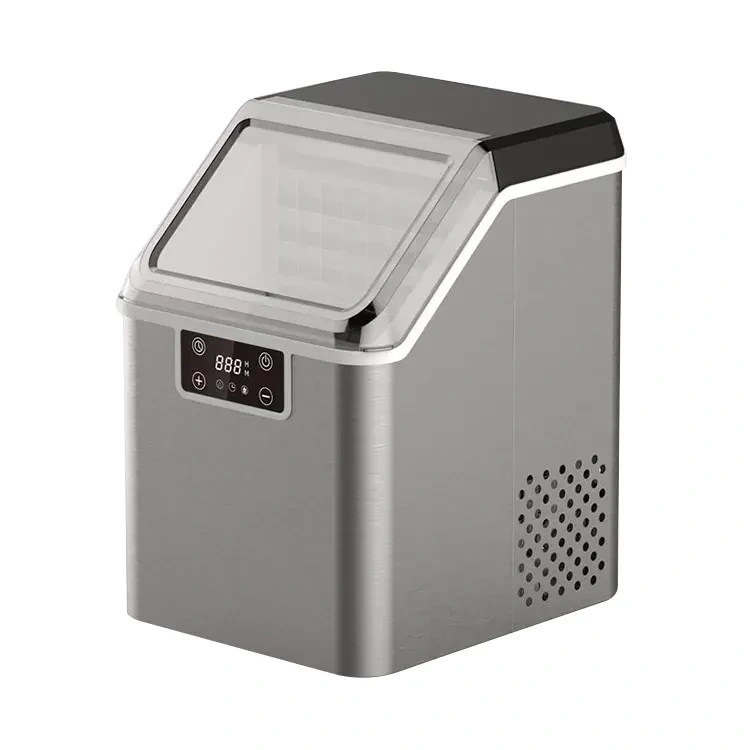

20kg/24h Cube Ice Maker

Developed by our in-house refrigeration R&D team with 6 years of ice equipment iteration experience, YOMAN factory’s 20kg/24h Cube Ice Maker optimizes compressor power and evaporator structure for all-day non-stop ice generation. Equipped with enlarged insulated ice bin, one-touch pipeline self-clean, adjustable ice thickness and four flexible water inlet schemes, it targets milk tea chains, multi-room boutique hotels, independent bars and large family villas with peak hour heavy ice demand. As a high-volume profit model for global wholesale distributors, it balances desktop compact layout and commercial continuous production capacity without extra floor installation space.

Complete Technical Specifications

Cube Ice  Characteristics

Clear Cube Ice Appearance

The water circulation and freezing structure are designed to produce solid cube ice with a clear appearance and consistent formation.

Consistent Ice Formation

The ice-making system is designed to maintain consistent cube formation from batch to batch, supporting regular beverage preparation and food-service use.

Adjustable Ice Thickness

Different thickness settings allow users to select an ice format according to the intended beverage or application.

Food-Contact Materials

Ice- and water-contact components use materials and parts meeting the applicable LFGB food-contact requirements for the specified configuration.

20kg/24h High Output Competitive Advantages

Surpass 15kg Model in Peak Load Bearing

20kg daily yield can stably support venues with daily ice consumption of 13–19kg, solving the insufficient ice shortage pain point of 15kg machine during weekend and holiday passenger peaks.

Optimized Continuous Refrigeration System

Upgraded compressor operation algorithm reduces performance attenuation under 12+ hours non-stop daily startup, stable ice output without frequent machine rest.

Balanced Energy Consumption vs High Capacity

Matched 190W low-power refrigeration unit avoids excessive power waste compared with large floor ice machines, suitable for small and medium commercial venues with limited power supply.

Enlarged Circulation Water Pump

Increase water flow rate to shorten ice forming waiting time, reduce repeated water adding frequency for store attendants.

Higher Wholesale Profit Margin for Distributors

Positioned as mid-high end commercial light ice machine, differentiated from low-capacity entry models, help wholesalers capture medium-traffic catering and hotel market share.

Integrated Product Features

One-Touch Full Pipeline Auto Cleaning

Independent flushing program built into control panel, disassemble-free deep descaling, cut daily store cleaning labor cost by over 60%.

Dual Intelligent Safety Alerts

Ice-full automatic power cut + Water Shortage Alert, avoid equipment dry burning damage caused by staff negligence during busy hours.

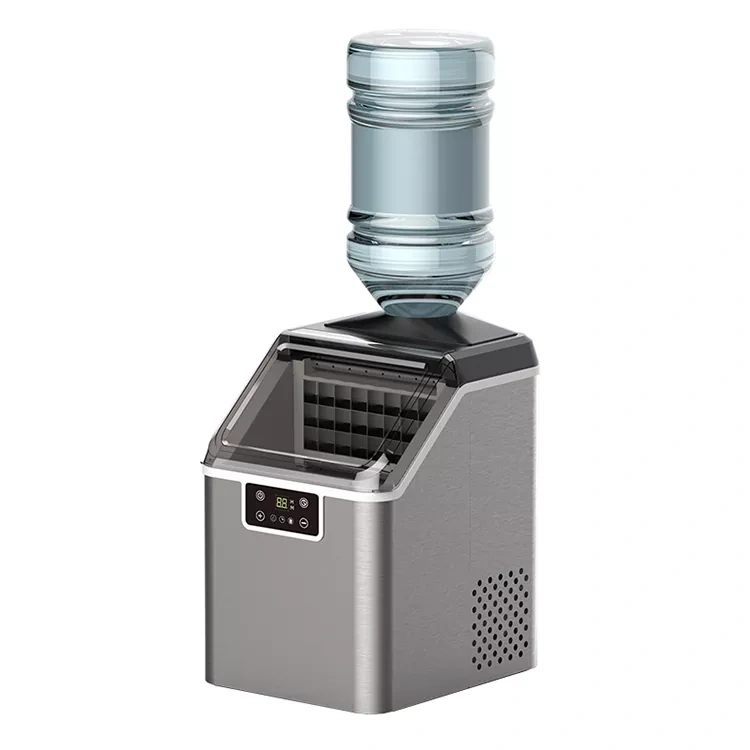

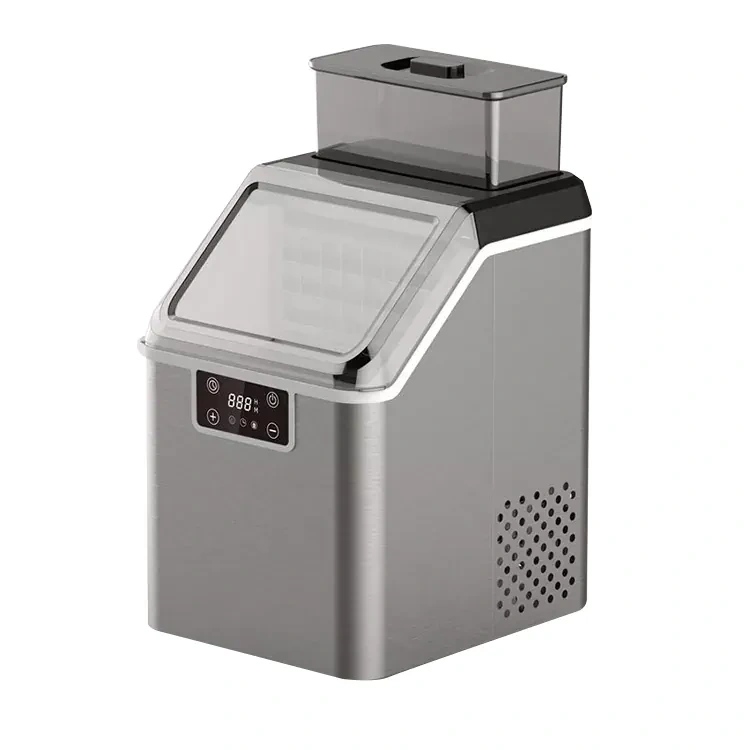

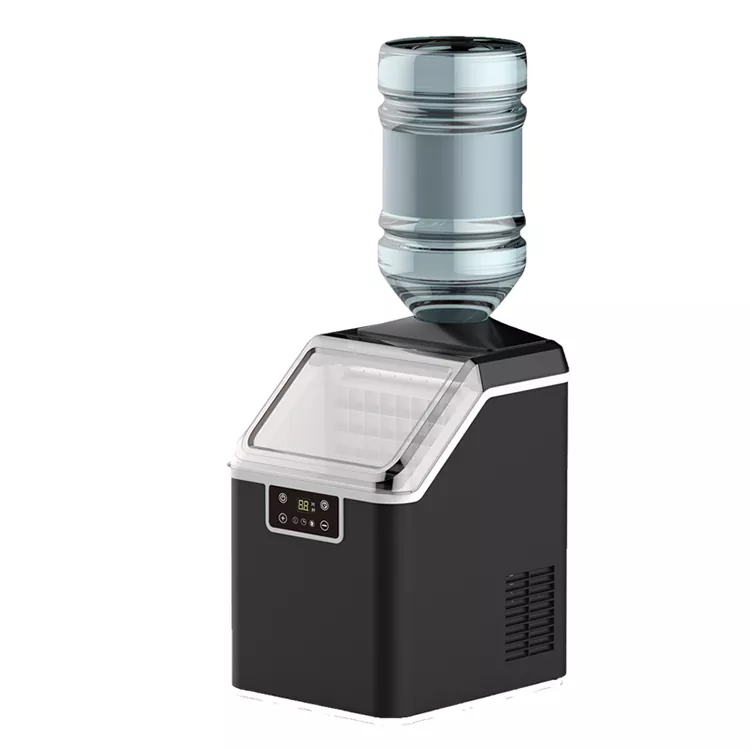

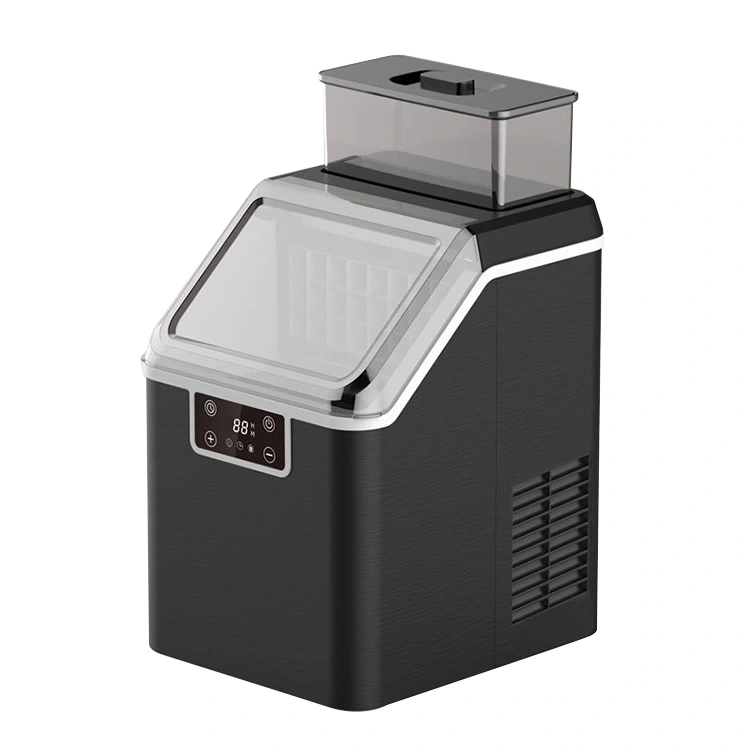

Four Universal Water Inlet Modes

Manual filling, top storage tank, external bucket connection and wall tap pipe access, adapt old shops without pre-buried water pipes and newly renovated stores.

Compact Desktop Body Without Floor Occupation

No fixed installation base required, can be freely moved between bar counter, guest room pantry and beverage workbench.

Low Noise Stable Operation

Optimized shock absorption structure of compressor, running noise controlled below 52dB, suitable for hotel guest room quiet environment all day long.

Working Principle

1. Water Circulation

The water pump transfers water from the internal reservoir to the evaporator area. Excess water returns to the reservoir to support continuous circulation during the freezing process.

2. Refrigeration and Freezing

The refrigeration system uses R290 refrigerant to remove heat from the circulating water. As the water temperature decreases, ice forms on the evaporator surface.

3. Ice Formation and Harvest

Once the ice reaches the preset condition, the machine enters the ice harvest stage and separates the formed cubes from the evaporator surface. The ice then falls into the insulated storage bin.

4. Automatic Repeat Cycle

When the storage bin is not full, the machine automatically continues the next ice-making cycle. When the ice bin reaches the full level, the corresponding protection function stops ice production until additional storage space becomes available.

Application Range

Milk Tea and Beverage Shops

The 20kg/24h rated output is suitable for beverage counters with higher daily cube ice demand than entry-level countertop models.

Boutique Hotels and Homestays

The countertop format can be used in guest service areas, pantry spaces and other locations requiring a compact source of ice.

Bars and Cocktail Lounges

Cube ice can be used for cocktails, spirits, soft drinks and other chilled beverages, while adjustable ice thickness provides flexibility for different drink applications.

Restaurants and Catering Areas

The 20kg/24h Cube Ice Maker can supply cube ice for beverages, self-service drink stations and selected food-service requirements.

Large Residential Properties

For villas, large apartments and family gatherings, the machine provides a higher-output countertop solution for users who require more ice than a small household ice maker.

Customer Cooperation Cases

1.  Offline Wholesaler from Taiwan, China

Since 2024, this customer has been purchasing 3×HQ containers of 20kg ice makers every year. Our high-quality and high-efficiency ice-making equipment is supplied to their offline retail stores.

2.  Client from Middle East

Our cooperation started in 2026. The customer provided core ideas while we took charge of R&D. We jointly developed the 2×6 large-size cube ice, which well solves the problem of fast-melting ice under high-temperature conditions.

FAQ

What is the rated ice production of this machine?

The rated ice production is 20kg per 24 hours under a test condition of 25°C ambient temperature and 20°C inlet water. Actual output can vary with operating conditions.

Is the 20kg/24h Cube Ice Maker suitable for commercial use?

Yes. It is designed for small commercial applications such as beverage shops, bars, restaurants, hotels and other locations with higher daily ice demand.

How long does one ice-making cycle take?

One ice-making cycle takes approximately 8–15 minutes. Actual cycle time depends on ambient temperature, water temperature and operating conditions.

Does the machine have an automatic self-cleaning function?

Yes. A dedicated pipeline flushing cycle is built into the standard configuration. It helps remove residual water, scale and debris from the internal water circuit during routine maintenance.

Can the ice thickness be adjusted?

Yes. Ice thickness can be adjusted through the digital touch control panel according to the selected operating setting.

What water supply options are available?

The machine can be configured for manual filling, a built-in upper water tank, an external water container or direct water inlet connection, depending on the product version.

Can this model be customized for private-label orders?

Yes. YOMAN provides OEM and ODM customization for logo, housing color, packaging, manual language and voltage configuration.

What is the MOQ and production lead time?

The initial MOQ starts at 500 units. Standard production lead time is approximately 40 days after deposit confirmation, subject to order quantity and customization requirements.
