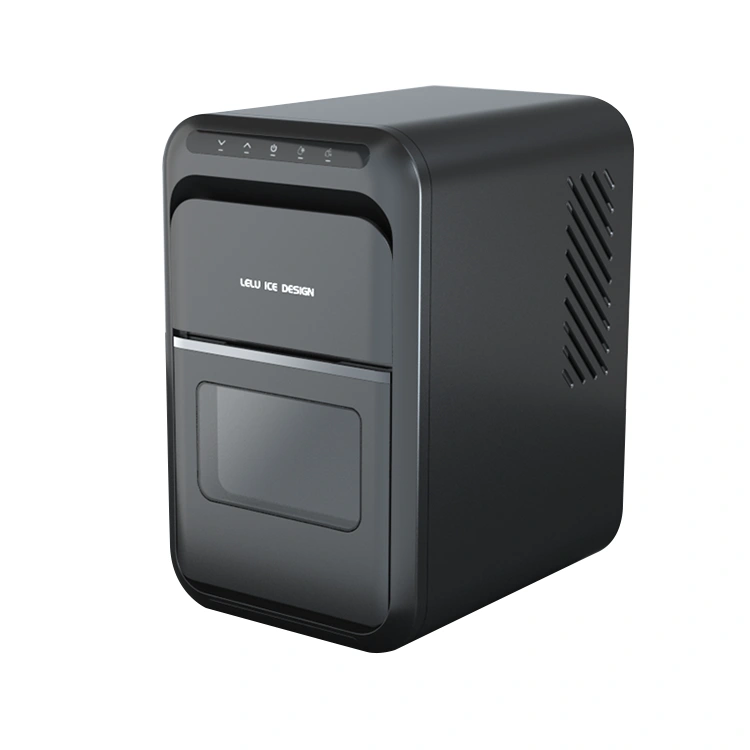

Double-Side Water-Spray Crescent Ice Maker

As a professional Crescent Ice Maker manufacturer in China, YOMAN would like to provide you high quality Double-Side Water-spray Crescent Ice Make r, which is a water-fed ice-making unit oriented for light-commercial scenarios .

Equipped with vertical double-sided stainless-steel spray evaporator, it forms crescent-shaped ice via pump-driven bidirectional water spraying. It supports tap-water connection or manual water-tank version. Target customers include cafes, cocktail bars, homestays and small tea-drink shops with moderate traffic. OEM private-label service is available for traders and brand owners to develop commercial ice-maker product lines.

Product Features

Food-grade stainless-steel evaporator resists corrosion and limescale build-up.

Tap-water inlet is supported;  manual water-tank version is optional.

Built-in auto-cleaning program simplifies water-circuit maintenance.

Dual safety protections (full-ice auto-stop, water-shortage alarm) prevent compressor dry-run.

Touch control panel shows working status clearly. It adopts R600A eco-friendly refrigerant.

Stainless-steel housing withstands daily bumps in store environments.

Custom logo, voltage and packaging OEM options meet diverse overseas-market requirements.

Working Principle

The water pump delivers water to the top spray water-distribution assembly. Water spreads evenly across both front and back surfaces of the vertical double-sided evaporator. Refrigerant inside the evaporator continuously absorbs heat. Water freezes layer by layer on both sides while impurities are separated out, gradually forming crescent-shaped ice. Once ice reaches preset thickness, the unit triggers the de-icing cycle. Hot gas flows into evaporator, ice slides down by gravity into the lower ice bin, and a new ice-making cycle starts.

Features of Double-side Water-spray System

1. The double-sided evaporator conducts heat exchange on both sides simultaneously, producing crescent ice from two surfaces per cycle to increase ice yield per cycle.

2. Optimized spray water-distribution creates even water-film coverage and reduces defective ice caused by local water shortage.

3. Continuous flowing water flushes away impurities, lowering limescale accumulation on evaporator surface.

4. Ice falls by gravity assisted by hot-gas de-icing without mechanical ice-pushing parts, reducing mechanical wear.

5. Water circuit works with auto-cleaning program; spray channels rinse evaporator surface to ease manual cleaning work.

Advantages vs Other Ice-making Systems

Vs traditional single-side spray system: Ice forms on both sides of evaporator, delivering higher ice output per cycle under equal conditions with improved heat exchange and shorter overall cycle time.

Vs immersion-type ice-maker: Flowing spray water washes away impurities, resulting in fewer air bubbles and higher ice clarity. Less limescale builds up on evaporator for longer component service life.

Vs static gravity water-flow system: Pressurized spray maintains stable water film for denser ice crystal structure and relatively slower melting speed.

Note: Output of all ice-making systems will drop under extremely high ambient temperature. Double-side spray brings relative performance advantages and cannot eliminate environmental impact completely.

Specifications

Applications

Cafes and Cocktail Bars

The Double-side Water-spray Crescent Ice Maker is suitable for businesses that need a regular supply of crescent ice for beverages, chilled drinks and bar service.

Homestays and Small Accommodation Businesses

The compact design and built-in water tank can be useful where a fixed water connection is not available.

Tea-drink and Beverage Shops

The machine can support moderate daily ice demand without requiring a large commercial ice-making system.

Light-commercial Food Service

Suitable for small restaurants, snack shops and other businesses with relatively moderate ice consumption.

Quality Control

The factory implements complete incoming-material inspection, in-process patrol checks and full finished-unit inspection. Raw-material material and performance screening is carried out upon arrival. Every unit undergoes power-on test, full ice-making-de-icing cycle verification, spray water-circuit leakage test, safety-alarm validation and tightness check before shipment. Batch sampling rechecks cooling performance and ice-forming quality. Relevant market-required safety certifications are available and copies can be provided for buyers. Appearance and accessories are double-checked before dispatch to reduce post-shipping failure risks.

FAQ

Q: Is tap-water plumbing mandatory for double-side water-spray system?

Q: Does double-side spray guarantee double ice output compared with single-side models?

A: Not necessarily. The double-sided evaporator provides more active freezing surface, but actual output depends on the compressor, evaporator design, ambient temperature, inlet-water temperature and other operating conditions. The theoretical output of this model is 15kg/24h under specified test conditions.

Q: How should I maintain the evaporator against limescale?

A: Run the built-in auto-cleaning cycle periodically. Filtered drinking water is recommended to reduce limescale. For heavy mineral deposits, perform deep flushing with commercial ice-machine cleaner.

Q: Is customization available? What are MOQ and lead-time?

A: OEM custom logo, voltage and packaging are supported. MOQ for first order is 500 units. Repeat orders can be full-container shipments. Normal production lead-time is around 45 working days after deposit receipt.
