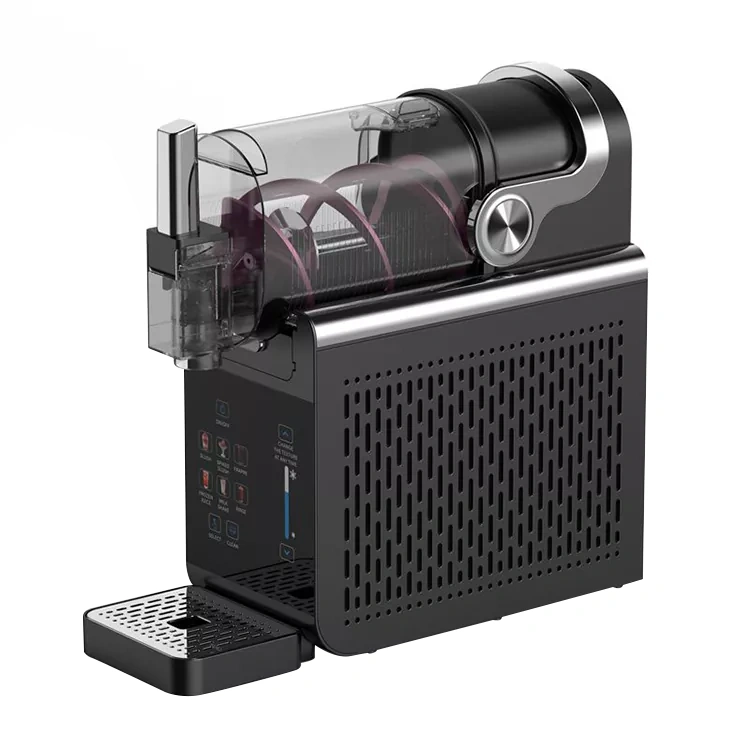

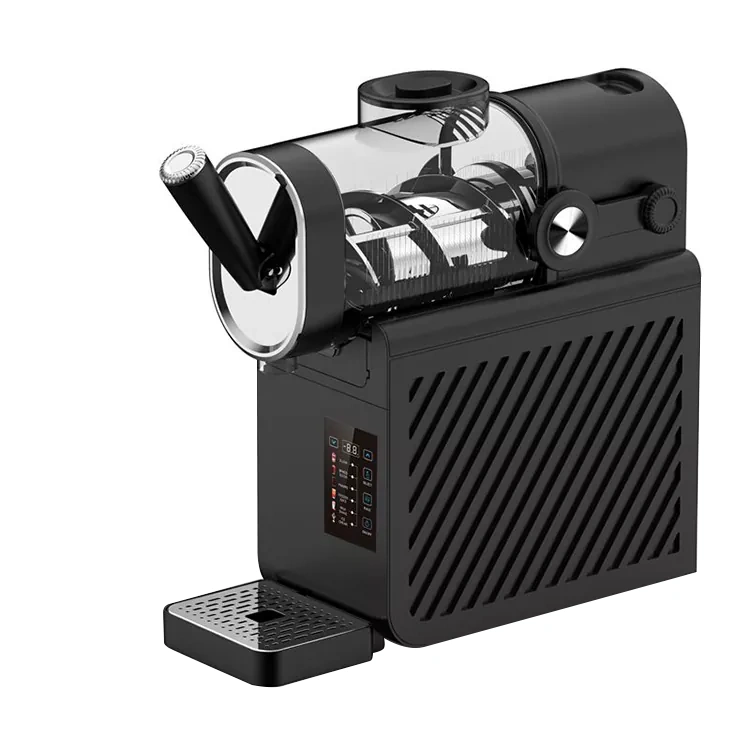

Compressor Cooling Slush Machine

The Compressor Cooling Slush Machine offered by YOMAN, a professionam supplier from China. It also integrates automatic stirring, one-touch self-cleaning, and dual safety protection into a compact countertop design.

With a rated power of 210W and rated current of 2.2A, the machine is suited to operators looking for a compact commercial slush solution rather than a large multi-tank system. For wholesale buyers, YOMAN also supports OEM/ODM customization, with a first-order MOQ of 500 units.

What Is a Compressor Cooling Slush Machine?

A Compressor Cooling Slush Machine is a frozen beverage machine that uses a mechanical refrigeration cycle to remove heat from a prepared drink mixture while continuously stirring it to develop and maintain a suitable slush consistency.

Unlike a simple blender or ice crusher, which prepares frozen drinks by mechanically processing ice, a compressor cooling slush machine uses a refrigeration system to cool the beverage directly. This makes it suitable for businesses that need a repeatable frozen drink preparation process during daily service.

The YOMAN model combines:

·  Compressor refrigeration

·  R290 refrigerant

·  1.8L transparent tank

·  Automatic stirring

·  Touch-button control

·  One-touch self-cleaning

Actual slush consistency depends on the beverage recipe, sugar content, viscosity, starting temperature, ambient conditions, and serving requirements. Recipes should be tested before regular commercial use.

How Does Compressor Refrigeration Work?

The machine uses a standard vapor-compression refrigeration cycle to transfer heat away from the beverage mixture.

Step 1 – Compression

The compressor raises the pressure and temperature of the R290 refrigerant gas before it enters the condenser.

Step 2 – Condensation

The high-pressure refrigerant releases heat through the condenser and changes from a gas into a liquid.

Step 3 – Expansion

The liquid refrigerant passes through the expansion device, where its pressure and temperature decrease.

Step 4 – Evaporation

The low-temperature refrigerant enters the evaporator around the beverage tank and absorbs heat from the drink mixture. The refrigerant then returns to the compressor and repeats the cycle.

This continuous refrigeration process allows the machine to remove heat from the beverage mixture while automatic stirring keeps the mixture moving during operation.

For suitable beverage formulations, the machine can reach approximately -2°C to -3°C operating temperature based on the supplied product specifications. Actual results depend on recipe and operating conditions.

Key Features

1.  R290 Compressor Refrigeration

The machine uses R290 refrigerant in a compressor-based cooling system. R290 has a GWP of 3, making it a low-GWP refrigerant widely used in modern refrigeration applications.

For a slush machine, compressor refrigeration provides active heat removal rather than relying on passive cooling. This makes the system suitable for repeated cooling during normal beverage service.

2.  Stable Cooling Performance

The refrigeration system continuously removes heat from the beverage mixture while the automatic stirring system keeps the product moving.

This combination helps support:

· More consistent cooling during operation

· More uniform beverage mixing

· Repeatable preparation from batch to batch

· Stable slush texture when the recipe and operating conditions are suitable

The machine is intended for normal commercial operating environments rather than unrestricted operation under all ambient conditions.

3.  1.8L Transparent Tank

The 1.8L tank provides an approximate output of 5-6  cups per batch, depending on serving size.

The transparent design also allows staff to monitor the beverage level and condition during service without opening the machine.

4.  Automatic Stirring

Automatic stirring keeps the beverage mixture moving during refrigeration, reducing the need for repeated manual mixing and helping maintain an even mixture.

5.  One-Touch Self-Cleaning

The integrated self-cleaning function simplifies routine cleaning after beverage preparation and can reduce the number of manual cleaning steps required by staff.

6.  Compact Commercial Format

With a 1.8L tank and compact countertop configuration, the machine is better suited to smaller commercial beverage operations that need controlled batch production without installing a larger multi-tank slush system.

Compressor Cooling vs. Conventional Cooling Methods

Different cooling technologies serve different operating requirements. The main advantage of compressor refrigeration is its ability to actively remove heat through a mechanical refrigeration cycle.

For beverage businesses, compressor cooling is useful when the machine needs to repeatedly remove heat from a liquid mixture rather than simply chill an already-cold beverage.

The appropriate technology still depends on the intended workload, capacity, recipe, ambient conditions, and operating schedule.

Application Scenarios

Cafes and Coffee Shops

The machine can be used to add fruit, citrus, tea-based, or other suitable frozen drinks alongside coffee and cold beverages.

Bubble Tea Shops

The compact tank allows stores to add a limited number of slush products without dedicating space to a larger multi-tank system.

Dessert Shops

Frozen beverages can complement cakes, pastries, waffles, ice cream, and other dessert products.

Food Trucks and Small Beverage Counters

The compact format is suitable for locations with limited countertop space where controlled-batch frozen beverage preparation is required.

Convenience Stores

The machine can support grab-and-go frozen drink offerings where a smaller-capacity commercial unit is more appropriate than a large beverage system.

Seasonal Beverage Operations

The machine can be used for seasonal menus, promotional drinks, summer specials, and other limited-time frozen beverage programs.

Product Specifications

Note: Freeze time varies with beverage formulation, starting temperature, ambient conditions, and operating conditions.

Production Process

As a manufacturer, YOMAN follows a structured production and inspection workflow for compressor cooling slush machines.

1. Component Preparation

Key components and materials are prepared according to the product specification, including the compressor refrigeration system, ABS housing, insulation materials, tank components, electrical parts, and control components.

2. Refrigeration System Assembly

The compressor, refrigerant circuit, condenser, evaporator, and related refrigeration components are assembled into the cooling system.

3. Tank and Housing Assembly

The transparent beverage tank, insulation structure, housing, control panel, and internal components are assembled into the finished machine.

4. Electrical and Refrigeration Inspection

The completed unit undergoes relevant electrical and refrigeration checks, including system sealing and operational verification.

5. Performance Testing

The machine is operated to verify refrigeration performance, stirring function, control operation, cleaning function, and safety protection.

6. Aging and Stability Testing

Units undergo aging or continuous-operation testing according to the applicable production and quality-control requirements.

7. Final Inspection and Packing

After final inspection, qualified machines are packed according to the required shipping and order specifications before shipment.

This production structure helps maintain consistency between batches and supports OEM/ODM orders for overseas buyers.

FAQ

1.  What is the capacity of this Compressor Cooling Slush Machine?

The machine has a 1.8L transparent tank and can produce approximately 5-6  cups per batch, depending on serving size.

2.  What refrigerant does the machine use?

The machine uses R290 refrigerant, which has a GWP of 3. Because R290 is a flammable refrigerant, the equipment should be installed, operated, and serviced according to applicable safety requirements.

3.  How does compressor cooling benefit a slush machine?

Compressor refrigeration actively removes heat from the beverage mixture and supports repeated cooling during operation. Combined with automatic stirring, it helps maintain more consistent cooling and mixing for suitable recipes.

4.  How long does it take to freeze the beverage?

The supplied specification indicates an approximate 15–20 minute freeze time. Actual performance depends on the recipe, starting temperature, ambient conditions, filling volume, and required slush consistency.

5.  What operating temperature does the machine use?

The supplied specification indicates an operating temperature of approximately -2°C to -3°C. Actual beverage texture depends on recipe composition and operating conditions.

6.  Is the machine suitable for commercial use?

Yes. Its compact 1.8L format is designed for small commercial applications such as cafes, bubble tea shops, dessert stores, food trucks, and convenience stores.

7.  Does it have a self-cleaning function?

Yes. It features one-touch self-cleaning to simplify routine cleaning.

Customization Process for OEM/ODM Orders

Step 1 – Submit Your Requirements

The buyer provides the required quantity, target market, voltage, logo, color, packaging, manual language, and other customization requirements.

Step 2 – Technical Review

YOMAN reviews the requested specifications and confirms whether the requirements can be applied to the standard product structure.

Step 3 – Customization Confirmation

Both sides confirm the product configuration, branding details, packaging requirements, and other agreed specifications before production.

Step 4 – Artwork and Sample Confirmation

Where applicable, logo files, packaging artwork, manuals, and other customized materials are reviewed and confirmed before mass production.

Step 5 – Mass Production

After order and deposit confirmation, production is scheduled according to the agreed specifications. The standard production lead time is approximately 45 working days.

Step 6 – Quality Inspection

Finished units are inspected and tested according to the applicable production and quality-control procedures before shipment.

Step 7 – Packing and Shipment

Approved products are packed according to the confirmed packaging requirements and prepared for shipment to the buyer's destination market.

This OEM/ODM process is suitable for importers, distributors, retailers, and brands that need a China-made commercial slush machine under their own brand or market-specific configuration.

Why Choose YOMAN as Your China Slush Machine Manufacturer?

YOMAN is a China manufacturer specializing in ice-making and frozen beverage equipment. Founded in 2020, the company operates a 30,000 sqm self-owned production facility and provides R&D, manufacturing, quality inspection, and OEM/ODM support.

For international buyers, YOMAN combines:

·  1.8L compact commercial slush machine

·  R290 compressor refrigeration

·  OEM/ODM customization

·  500-unit first-order MOQ

·  Approximately 45 working days production lead time

·  International certifications including CE, CB, ETL, GS, LFGB, and EMC

For wholesale purchasing or customized orders, buyers can provide their required quantity, voltage, destination market, branding, and packaging specifications when requesting a quotation.

Request a Quote

For commercial slush machine wholesale, OEM/ODM projects, or China factory pricing, contact YOMAN with your required specifications and target order quantity for a product quotation.
